标准孔板差压式流量计当前位置: 主页 > 产品中心 > 孔板流量计 > 标准孔板差压式流量计
价 格 | 面议 |
起批量 | ≥1套 |
最小起订电询 |
供货总量电询 |
发货地址无锡江阴市 |
建议售价¥电议 |
更新日期2020-07-01 |
型号Model::HLGBH
适用范围Scope of application:DN50-630mm
适用压力Applicable pressures:PN0.01~2.5Mpa
适用温度Applicable temperatures:T≤400℃
直径比Diameter ratio:β=0.2~0.75
雷诺数Reynolds number;Red=5x10'-10°
可提供前后各2D或特殊要求长度的测量管段,D为管道内径。
We can provide 2D measurement pipe sections or those of lengths of special requirements for the front and back respectively.D refers to the pipe inside diameter.
用途及特点:适用于气体、液体和蒸气等流量测量、控制和调节。它具有测量精度高、造价低,安装使用、维护方便等特点。
Uses and features:It is fit for the measurement,control and adjustment of the flow of gas,liquid or steam,featuring a high measurement precision,a low construction cost,easy mounting,use and maintenance,etc.
型号Model;HLGBZ
适用范围Scope of application:DN400~3000mm
适用压力Applicable pressures:PN0.01~2.5Mpa
适用温度Applicable temperatures:T≤350℃
直径比 Diameter ratio:β=0.20~0.75
雷诺数Reynolds numbers:Red=5×10°~10°
用途及特点:适用于气体、液体等介质的流量测量控制和调节。它具有测量精度高、安装使用方便,造价低等特点。
Uses and features:It is fit for the measurement,control and adjustment of the flow of media such as gas and liquid,featuring a high measurement precision,easy mounting and use,a low construction cost,ete.
型号 Model:HLGBF
适用范围Scope of application:DN50~1000mm
适用压力Applicable presures:PN0.01~2.5Mpa
适用温度Applicable temperatures:T≤350℃
直径比 Diameter ratio:B=0.2~0.75
雷诺数Reynolds number:Red=8x10'~10'
可提供前10D,后5D测量管段或前后各2D测量管段。D为管道内经
We can provide 10D and 5D measurement pipe sections for the front and back respectively or 2Drespectively.D refers to the pipe inside diameter.
用途及特点:广泛用于炼油、化工等行业各种介质的流量测量、控制和调节。它具有安装使用、维护方便等特点。
Uses and features:It is widely used for the measurement,control and adjustment of the flow of various media in oil refining,chemical and other sectors featuring easy mounting,use and maitenance,ete.
型号Model):HLGBJ
适用范围Scope of application:DN50~630mm
适用压力Applicable pressures:PN4-25Mpa
适用温度Applicable temperature:T≤400℃
直径比 Diameter ratio:β=0.2-0.75
雷诺数 Reynolds number):Red=5x10'~10'
可提供前后各2D或特殊要求长度的测量管段。D为管道内径。
We can provide 2D measurement pipe sections or those of lengths of special requirements for the front and back respectively.D refers to the pipe inside diameter.
用途及特点:广泛用于冶金等行业各种介质的流量测量、控制和调节。它具有结构简单、介质不易堵塞取压孔等特点。
Uses and features:It is widely used for the measurement,control and adjustment of the flow of various media in metallurgical and other sectors featuring a simple structure,the media being unlikely to clog the pressure-tapping hole,etc.

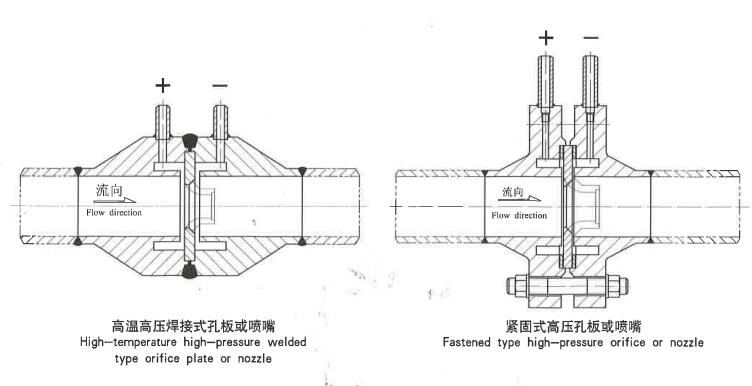

型号Model:HLGBH HLGPH
适用范围Scope of application:DN50~400mm
适用压力Applicable pressures:PN2.5~37Mpa
适用温度Applicable temperatures:T≤555℃
直径比Diameter ratio:β=0.3~0.8
雷诺数Reynolds number:Red=5×10'~10'
可提供前后各2D测量管段,D为管道内径。
We can provide 2D measurement pipe sections for the front and back respectively.D refers to the pipe inside diameter.
用途及特点:适用于电厂高温高压下的液体,蒸气及热网管道的流量测量、控制和调节。它具有耐冲击,孔板或喷嘴不易变形,压力损失小,使用寿命长等特点。
Uses and features:It is fit for the measurement,control and adjustment of the flow of liquid,steam and heat network piping under a high temperature and pressure featuring impact resistance,orifice or nozzle being unlikely to suffer deformation,a light pressure loss,a long service life,ete.
