HDW系列弯管流量计工作原理 Working principle
HDW系列弯管流量计属于差压式流量测量系统。是利用流体流经弯管传感器时做圆周运动面产生离心力的原理，该离心力的大小与流体速度、流体质量(密度)以及做圆周运动的曲率半径等因素有关。
The HDW series ellow meters are differential pressure type flow measuring systems，which work on tihe principle of a centrifugal force produced while the fluid is passing the elbow sensor in circular motion.The centrifugal force is related to factors such as the fluid velocity，ftuid mass(density)and curvature radius of the circular motion.

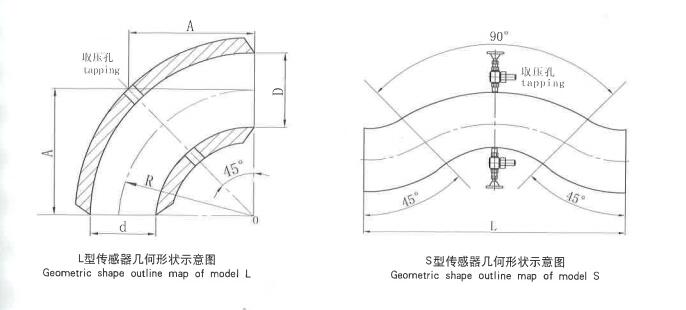

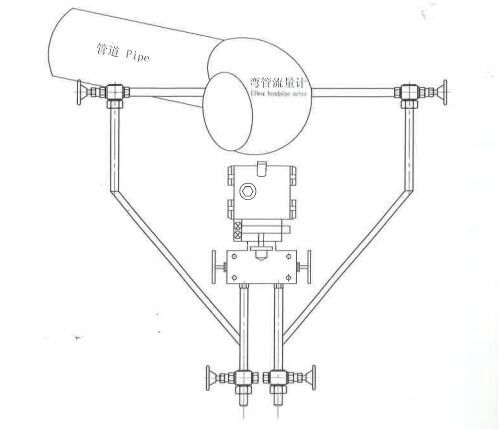

HDW系列弯管流量计系统结构图
HDW系列弯管流量计参数
| 管径范围（mm） | DN15-2000（对于现场改造的弯管传感器，没有管径限制） |
| 流速范围（m/s） | 液体0.1-12蒸汽或气体5~160 |
| 准确度 | ±l% |
| 工作环境 | 转换器：温度-10-45℃湿度小于85%（特殊情况请说明） |
| 信号输出 | 4-20mA RS-485 RS-232 |
| 工作电源 | AC220V，50HZ或DC12~24V |
| 测量介质 |
液体：水、油、甲醇、甲苯、液氨等 气体：高炉煤气、焦炉煤气。混合煤气、氯气.氢气、氧气、空气，氮气等 蒸汽：饱和蒸汽、过热蒸汽 |
| Pipe isameter range (mm) | DN15-2000(No limit to the pipe diameter for elbow sensors featuring field transformation) |
| Curent velocity range(m/sl | Liquid 0.1～1.2 Steam or gas 5-160 |
| Accuracy | ±1% |
| Working environment | Converter: temberature 10-45℃, humidity lower than 85 %(please indicate special cases) |
| Signal output | 4-2(0mA RS0485 RS-232 |
| Working power | AC220V,50HZ or DC12-14V |
| Medlin t be measured |
Liquids: water, oil, carbinol, methylbenzene, liquid ammonia, ete. Gases: blast furnace, coke-oven gas, mixed gas, chlorine, hydrogen, oxygen, air, nitrogen, etc. Steams: saturated steam, superheated steam |

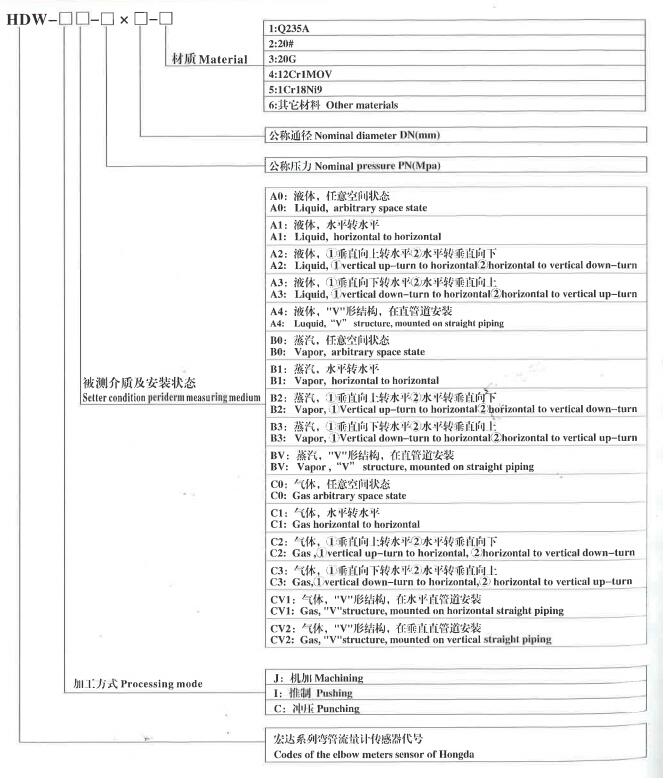

HDW系列弯管流量计选型编码
 |
 |
 |
 |
 |
Chinese
English
